WSG24POE - Admin Guide - English

The line of Wildix network switches WSGxxPOE is going EOL after the current stock is over.

You can check the availability of items remaining in stock on WMP.

This manual explains how to log in and to configure WSG24POE via administrator web interface of the switch.

Version created: June 2016

Version updated: June 2018


On this page:

Initial connection

Turn on the switch

Before powering on the switch, make sure the voltage is correct. The power supply socket is situated on the back panel of the switch.

Plug the power supply into the switch: the power indicator on the front panel must turn on.

LED indicators and ports description

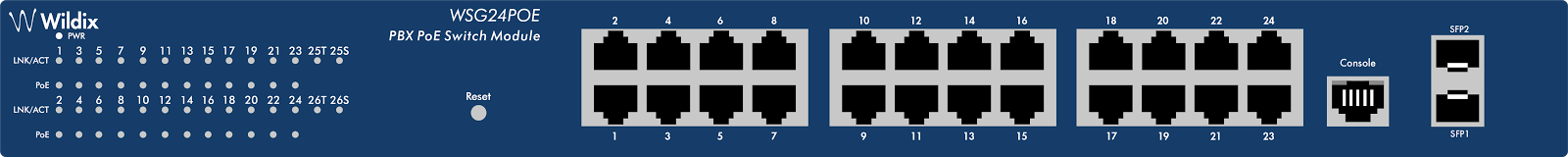

Front panel:

Ports description:

  • 10/100/1000Mbps RJ45 ports (1-24): connect devices with 10 / 100 / 1000Mbps bandwidth.

  • SFP ports (SFP1, SFP2): install SFP module and connect devices with 1000Mbps bandwidth.

  • Console port (Console): connect a serial port of PC / terminal for monitoring and configuring the Switch.

  • Reset button (Reset): (device is connected to power supply) press and hold the button for about 5 sec.

LEDs description:








Power is supplied


No power

Link / Act / Speed


Orange (10/100Mbps)


A valid link is established


No link is established

Green (1000Mbps)


Data packets are received or transmitted

Link / Act / Speed (SFP1,2)



A valid link is established


No link is established


Data packets are received or transmitted

PoE (1-24)



A PoE PD (Powered Device) is connected to the port


No PD is connected to the port


The PoE power circuit may be in short or the power current may be overloaded.

Access web interface

The default settings of the Switch:

  • Default IP address:

  • Default user name: admin

  • Default password: admin

(PC must be in the same network as the switch:

Connection of devices

Connect devices to the ports of the Switch using a network cable (check the datasheet for more information). 1-24 ports have power supply function (see the datasheet for the max power output)

How to configure Voice and Data Vlans

Firmware version: V103SP6D180529 and Firmware version: V103SP7D230713

Upgrade the switch

  1. Download the firmware from Google Drive: or the latest version of firmware

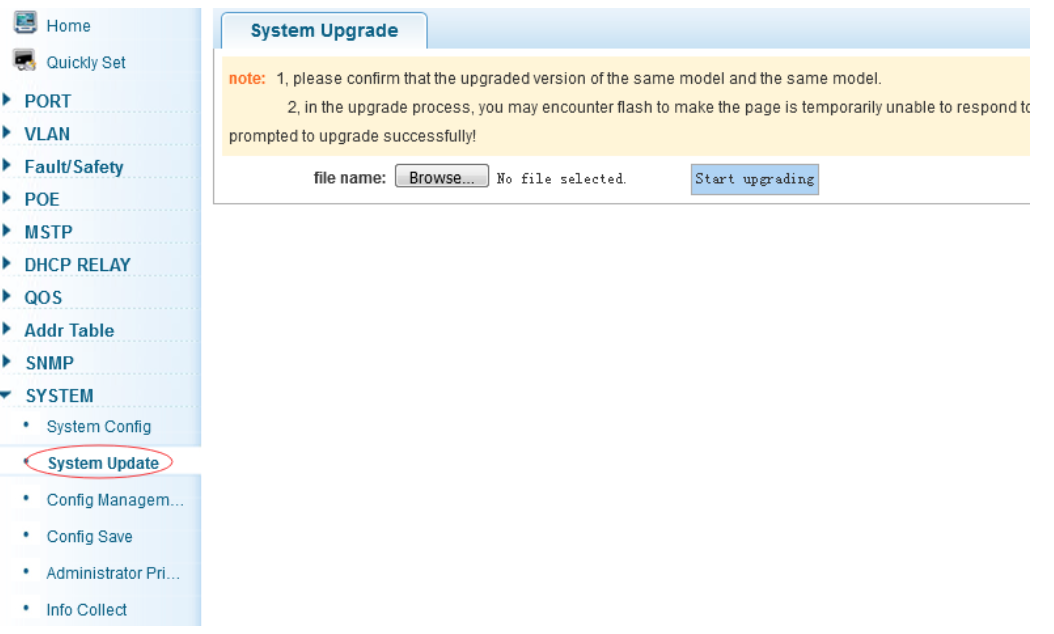

    Access the web interface of the switch, Menu System-> System Update to upgrade the switch
  2. After the upgrade to this version the switch must be reset: press and hold the Reset button for about 5 sec.

Connection Scenario

  • Phones and PCs are connected to the switch
  • LAN port of the PBX is connected to the switch (WAN port of the PBX is connected to WAN switch, for external access)
  • Phones and Wildix devices as well as LAN PBX port get the IP from the Switch, in our example, from the pool 192.168.1/24
  • PCs get IP from the external DHCP server, reachable by the switch via port 1, in our example,

Create new VLAN ID

  1. Go to VLAN Management → Vlan Config → Vlan Settings
  2. You have Vlan 1 created by default in this menu
  3. Create Vlan 2 and enable it for all the ports excluding the port that you used to connect the switch to PC

Create Voice VLAN

  1. Go to VLAN Management → Voice Vlan → Voice VLAN Config
  2. Set the flag for Voice VLAN Enable and set Voice VLAN ID
  3. Go to the tab Voice VLAN Port Config and enable VLAN on ports all the ports excluding the one you used to connect your PC
  4. Disable VLAN on the port on which the external DCHP server is supposed to be reachable (port 1 in our example)

Configure the Management VLAN

  1. Go to System → Config

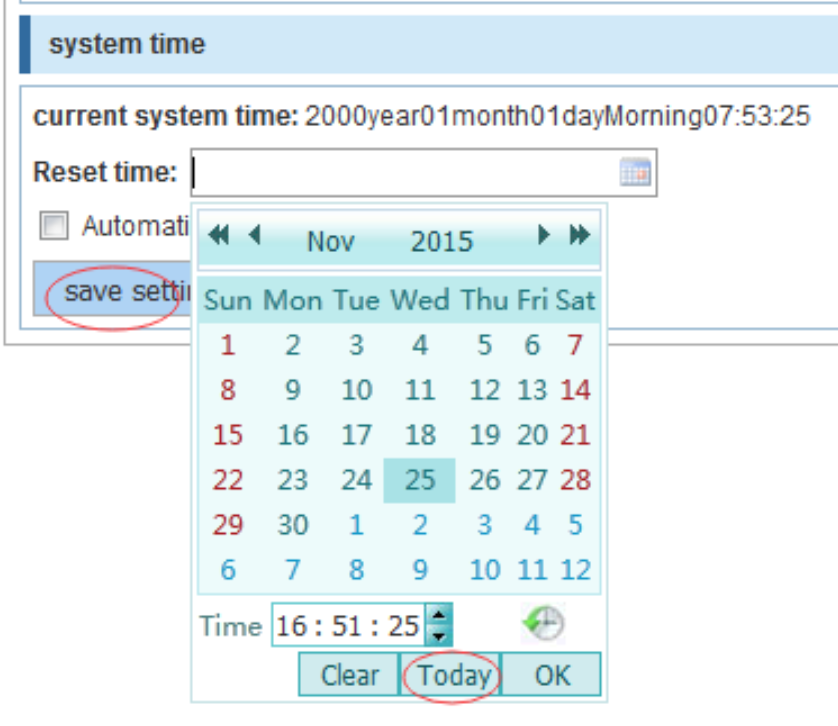

  2. Make sure the switch time settings are correct in System Time section
  3. The Management Vlan is already configured on Vlan1 by default (

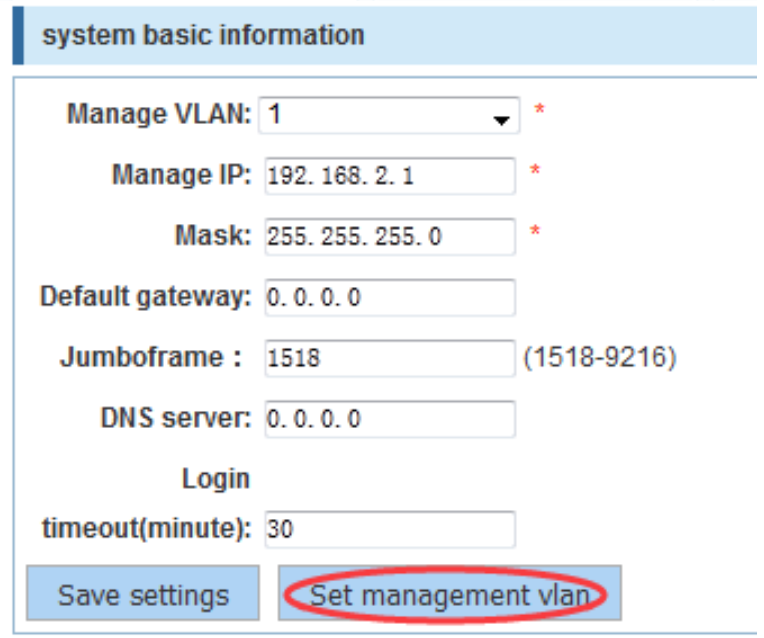

  4. Press Set Management VLAN
  5. Set:
    • Management VLAN: 2 (Voice VLAN ID)
    • Management IP: (Management IP of the switch on Vlan2)
    • Subnet mask:
    • Default gateway:
  6. Press Save

Note: The IP pool of DHCP server running on Vlan2 must be in the same network as the Management IP on Vlan2 (in our example,, this is why we change the Management IP on Vlan1.

In our example we have also changed Management VLAN1:

Note: after changing Management VLAN 1, you will lose access to the switch and you will have to reconnect using the new IP.

Set Hybrid Ports

  1. Go to VLAN Management → Vlan Config → Hybrid Port Settings
  2. Remove VLAN TAG: 1-2 for ports 2-26:

Enable DHCP Server

  1. Go to DHCPServer → Dhcp Config and enable the option (move the switch in ON position)
  2. Go to the tab Pool Config to configure the pool of IP addresses released by DHCP server

In our example the Pool ID 2 is associated to Vlan 2 and is used to assign IP addresses from the following range: - (external DHCP server for PC will be connected to port 1):

External DHCP

To disable Voice VLANs and internal DHCP server, and to enable only the external DHCP to release IP addresses, you have to disable Voice Vlan in Vlan Management → Voice VLAN

To enable external DHCP to release IP addresses to the PC network, we have to enable the Trusted IP port, to which the DHCP server is connected.

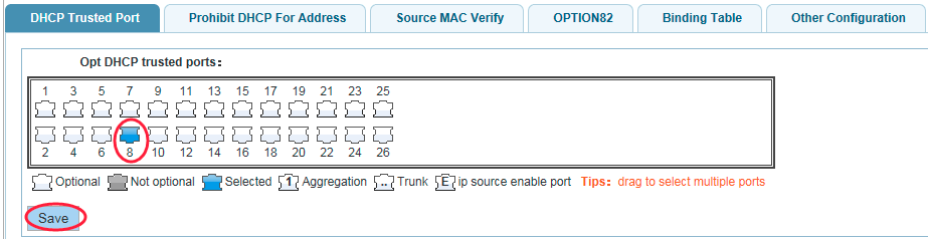

Go to Security → Firewall → Dhcp Trusted Port to add the trusted port:

To enable external DHCP server to release IP addresses to the PC network, we have to enable the snooping Vlan on Vlan1, where the DCHP server is connected.

Go to the tab Other configuration → Dhcp Snooping Vlan and add the Vlan1:


Going back to VLAN Management → Vlan Config menu, you should see the following configuration:

  • Wildix Phones connected to any ports of the Switch receive IP address from Vlan 2 pool
  • PCs connected to Switch ports receive IP from Vlan 1 pool
  • Wildix Phones connected to any ports and PCs connected to PC port of the phone: phone gets IP on Vlan 2, PC gets IP on Vlan 1

Menu description and configuration


The home page displays the following information:

  • Configuration menu (at the bottom)

  • Software and Hardware Versions (on the top)

  • Status of ports

Quickly Set

  • Create a VLAN

  • Add port in VLAN

  • Set the basic information and change the switch login password

Configuration example

Create VLAN:

Add port in VLAN:

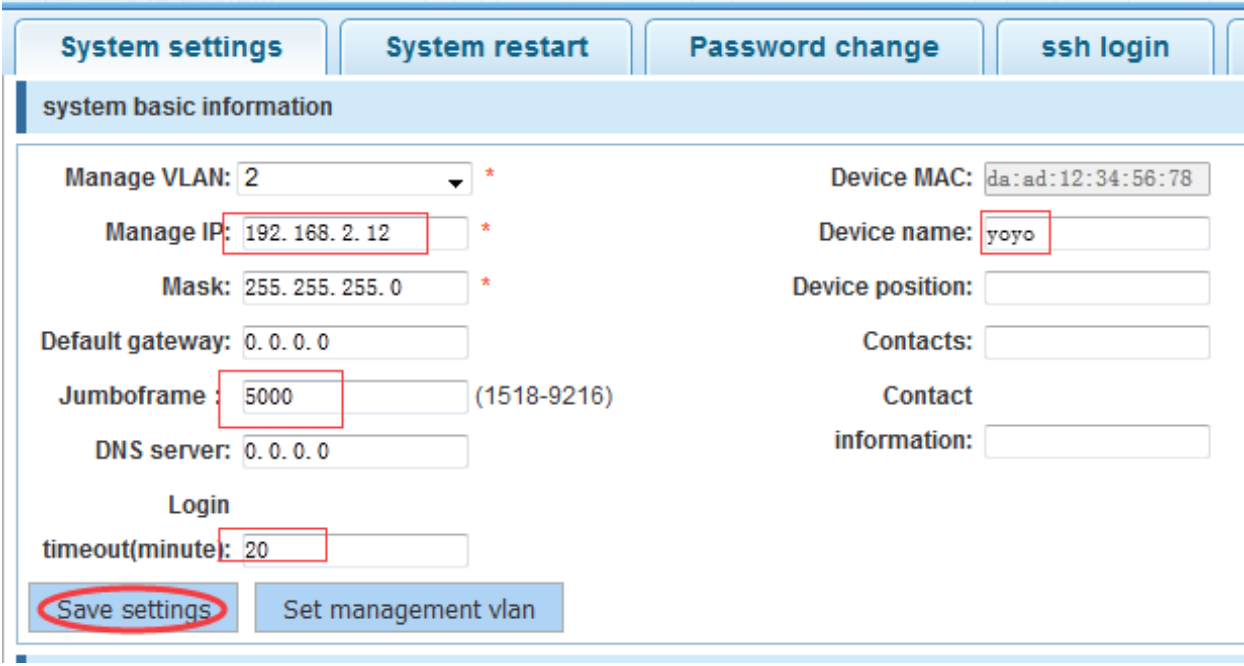

Set the basic information:

Change the switch login password (use the IP address set up on the previous step to log in):

PORT Management


  • Basic Config

  • Port Aggregation

  • Port Mirroring

  • Port Limit

  • Storm Control

  • Port Isolation

  • Port Information

Basic Config

Set up:

  • Port Speed

  • Status

  • Duplex Mode

  • Flow Control

  • Cross Type Detection

Configuration example:

Port Aggregation

  • Select Load Balancing method
  • Expand the port bandwidth or achieve the bandwidth of the redundancy backup

Configuration example:

Set the ports 9-10 for aggregation of port 1, the aggregation port 1 can build switch links if connected to another switch aggregation port 1:

Port Mirroring

  • Open port mirror feature

All packets on the source port are copied and forwarded to the destination port, destination port is usually connected to a packet analyzer to analyze the source port, multiple ports can be mirrored to a destination port.

Configuration example

Set a mirror group for port 3 regulatory port 4, 5, 6 on and out flow conditions:

Port Limit

Set up:

  • Input Speed Limit

  • Output Speed Limit

1Mbit/s=1000Kbit/s=1000/8KB/s=125KB/s (The theoretical rate of 1M bandwidth is 125KB/s)

Configuration example

Set up on port 5 input rate - to 6400KB/s, the output rate - to 3200KB/s

Storm Control

  • Set suppression limits

Configuration example

Set up on port 20 broadcast limit is set to 200pps, the multicast limit - to 400pps, the unicast limit - to 350pps.

Port Isolation

  • Isolate port from one or multiple destination ports

All packets on the source port are not forwarded from the isolated port, and one port can be separated from multiple destination ports.

Ports that have been added to the aggregate port aren't also capable of being a destination port and source port. Destination port and source port cannot be the same.

Configuration example

VLAN Management


  • Vlan Config
  • Voice VLAN

Vlan Config


  • VLAN Settings

  • Access Port Settings

  • Trunk Port Setting

  • Hybrid Port Settings

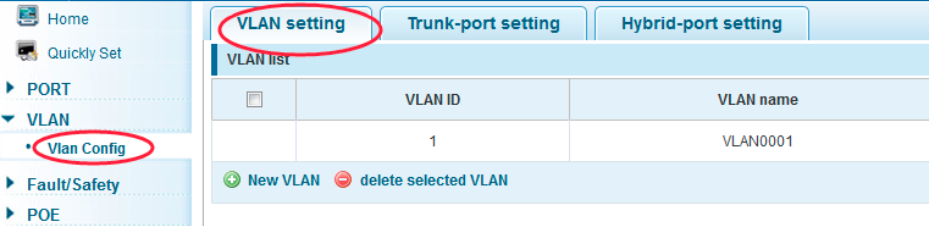

VLAN settings
  • Create VLANs and set the port to the VLAN (port default state for the access mode)

Default VLAN cannot be deleted. Add ports to access port, port access mode can only be a member of the VLAN.

Screen Shot 2016-03-24 at 12.04.28.png

Configuration example

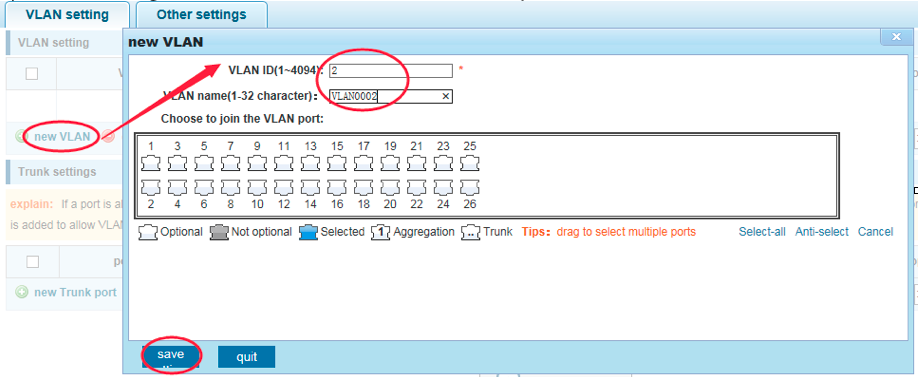

Create VLAN2:

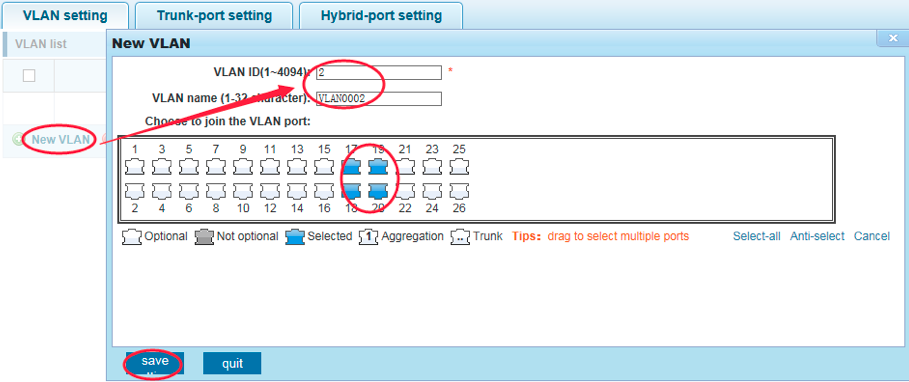

Screen Shot 2016-03-24 at 12.07.59.png

Trunk-port setting

  • Set port to Trunk port

Configuration example

PC1:, port 18, access VLAN2.
PC2:, port 7, Trunk allowed VLAN 1-2.
PC3:, port 6, access VLAN1 (The default port belongs to VLAN1).
Can let the PC2 PING PC1, cannot PING PC3.

Screen Shot 2016-03-24 at 12.12.56.png

Hybrid-port setting

  • Allows to set VLAN tags

Hybrid port receives a packet and checks if there is VLAN tag, and based on it forwards the packet or discards it.

Configuration example

Create VLANs 10, 20, VLAN sets the Native VLAN port 1 to 10, to tag VLAN for 10, 20, sets the Native VLAN port 2 to 20, to tag VLAN for 10, 20.

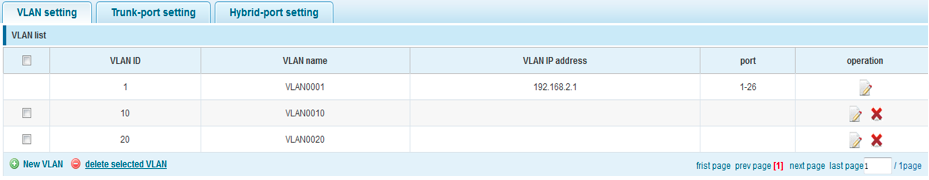

Screen Shot 2016-03-24 at 12.19.41.png

Screen Shot 2016-03-24 at 12.20.13.png

Fault / Safety

  • Anti Attack

  • Channel Detection

  • ACL

Anti Attack

  • Anti DHCP Attack

  • Anti DOS

  • IP Source Guard

  • Anti Three Bind

Anti DHCP Attack
  • Allows you to select port as a trusted port

Configuration example

Screen Shot 2016-03-24 at 12.33.52.png

Screen Shot 2016-03-24 at 12.34.12.png

Set trusted port and prohibited port:

Screen Shot 2016-03-24 at 12.34.31.png

Screen Shot 2016-03-24 at 12.35.00.png

Verify source MAC address and set server IP address:

Screen Shot 2016-03-24 at 12.35.46.png

Set option82 information:

Screen Shot 2016-03-24 at 12.37.20.png

Set port 7 for binding:

Screen Shot 2016-03-24 at 12.37.58.png

Anti DOS

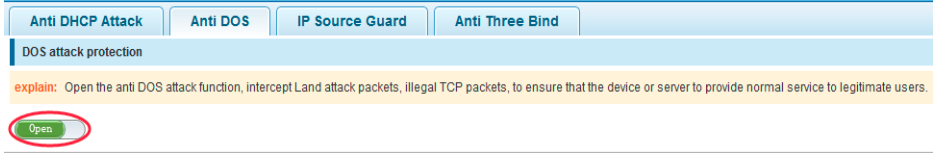

  • Enable anti DOS attack function to intercept attack packets and illegal TCP packets

Screen Shot 2016-03-24 at 12.41.03.png

IP Source Guard
  • Enable the packet filter control to prevent illegal messages through the port and limit illegal use of network resources

Configuration example

Set port 14 as a secure port

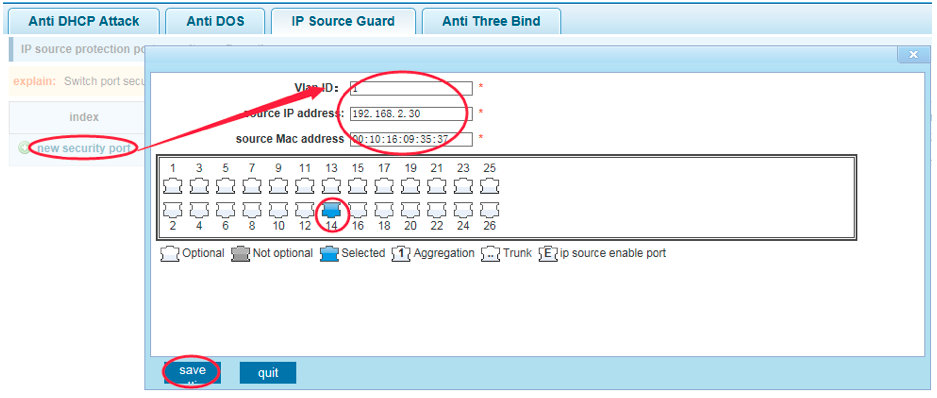

Screen Shot 2016-03-24 at 12.43.14.png

Anti Three Bind
  • Allows to bind IP address and MAC address

Configuration example

Screen Shot 2016-03-24 at 12.47.53.png

Channel Detection

Pint testing
  • Ping a host

Configuration example

Ping IP address of PC connected to the switch

Screen Shot 2016-03-24 at 13.35.53.png

Tracert testing
  • Perform an interface traceroute test

Configuration example

Check an IP address of PC connected to the switch

Screen Shot 2016-03-24 at 13.40.41.png

Cable testing
  • Check connection status of device

Configuration example

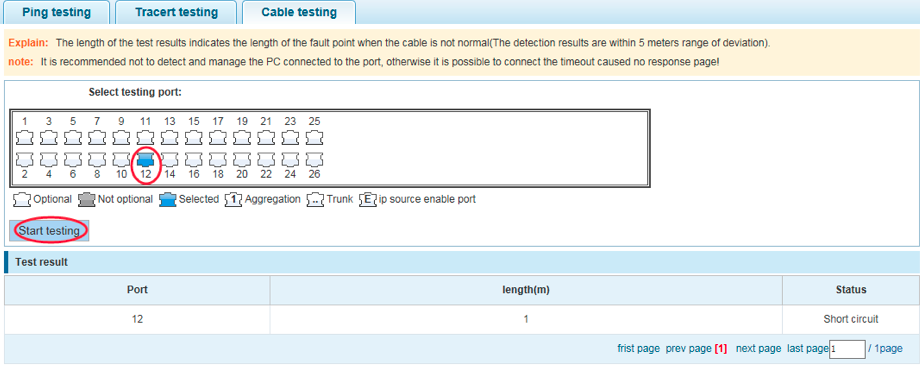

Screen Shot 2016-03-24 at 13.42.18.png


  • Set up ACL rules and their priority

Configuration example

Set the timetable for your ACL rule:

Screen Shot 2016-03-24 at 13.45.30.png

Create ACL rules:

Screen Shot 2016-03-24 at 13.46.12.png

Screen Shot 2016-03-24 at 13.47.35.png

Apply ACL to ports:

Screen Shot 2016-03-24 at 13.48.02.png


  • PoE Config

  • PoE Port Config

PoE Config

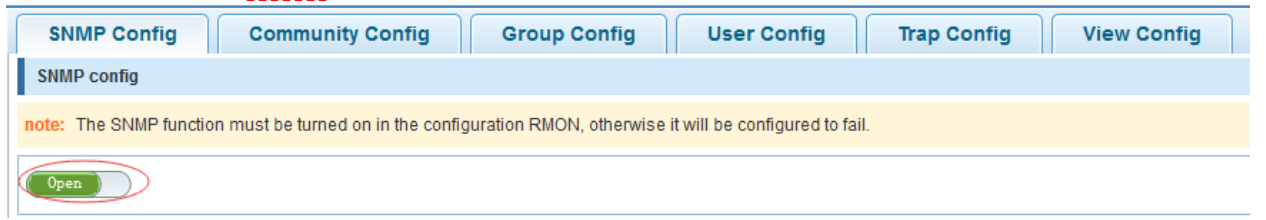

To receive trap notices, SNMP must be open and the Trap must be set to the target host.

Senior management
  • View PoE state information

  • Change the configuration

Configuration example

Alarm power set to 245W, reserved power to 15%, open the supply mode and the alarm power.

Screen Shot 2016-03-24 at 13.54.34.png

Temperature distribution
  • Set up the alarm threshold

Configuration example

1 warning threshold is set to 80 chip, chip 2 warning threshold is set to 100, chip 3 alarm threshold is set to 120:

Screen Shot 2016-03-24 at 14.01.11.png

PoE port config

  • PoE port configuration: enable / disable, set port priority, set up detection mode and max power

Configuration example

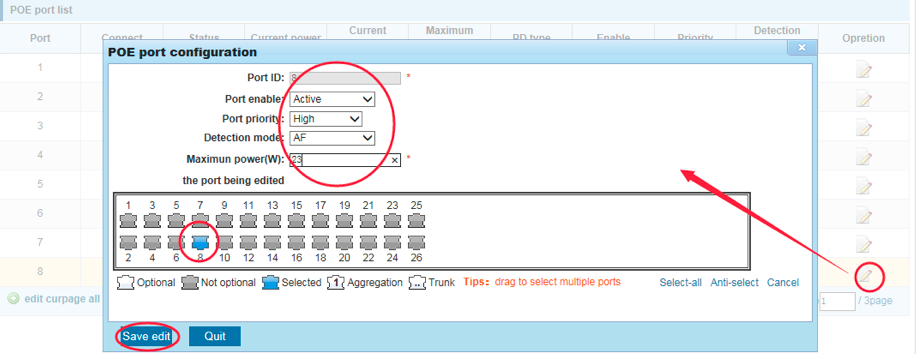

Set port 8 to active, set the maximum power to 23W, detection mode for AF, set high priority.

Screen Shot 2016-03-24 at 15.03.30.png


  • Mstp Region

  • Mstp Bridge

MSTP Region

  • Modify the domain name

  • Map instance to VLAN

Configuration example

Change the region to DEADBEEF0102, region name is 123, instance 4 is mapped to a VLAN 2:

Screen Shot 2016-03-24 at 15.07.48.png

MSTP Bridge

  • Enable STP bridge function, set up bridge priority

(hello_time+1)×2<=max_age<=(f_delay-1)×2, enable the switch to set instance priority.

Screen Shot 2016-03-24 at 15.13.22.png

Configuration example

Enable STP bridge function (set “Enable” to “on”) and create an instance of the priority, set up time parameters, set up pattern to “mstp”:

Screen Shot 2016-03-24 at 15.20.55.png

Select the created instance and set the priority for the selected port (ports):

Screen Shot 2016-03-24 at 15.21.47.png

DHCP Relay

  • DHCP Relay

  • Option82

DHCP Relay

  • Enable DHCP relay function

  • Set up the IP address of relay server and the status

DCHP server and switches must be in the same network segment.

Configuration example

Set up DHCP server IP and view the status:

Screen Shot 2016-03-29 at 15.24.29.png


  • Set option82 circuit control, remote proxy, IP address

Configuration example

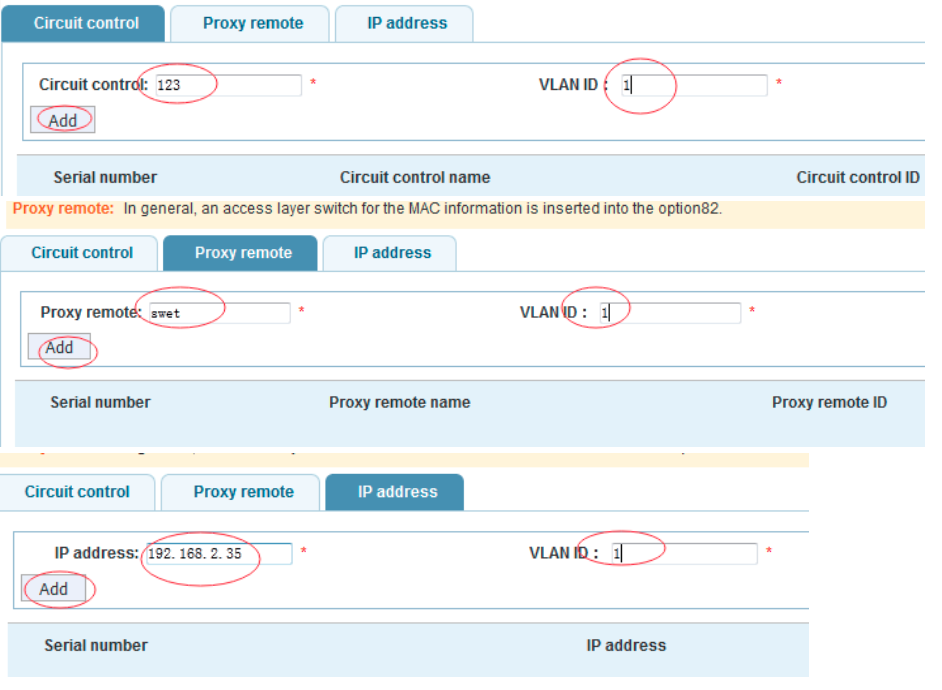

Screen Shot 2016-03-29 at 15.33.43.png


  • Remark

  • Queue config

  • Mapping the queue

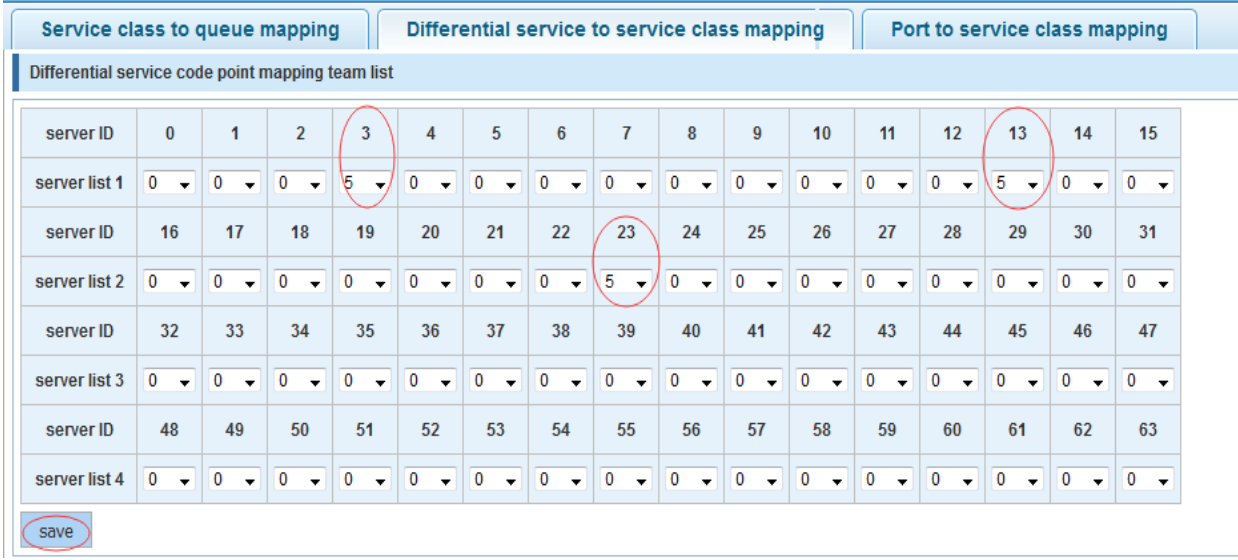

Allows mapping different packages to different COS, according to different matching rules and then map different packages to different queues and set up priority value.

Configuration example

Destination address for 00:01:23:09:35:36 are forwarded to ports 3, 4, 5, 6, priority is set up to “3”

Screen Shot 2016-03-29 at 15.44.35.png

Queue config

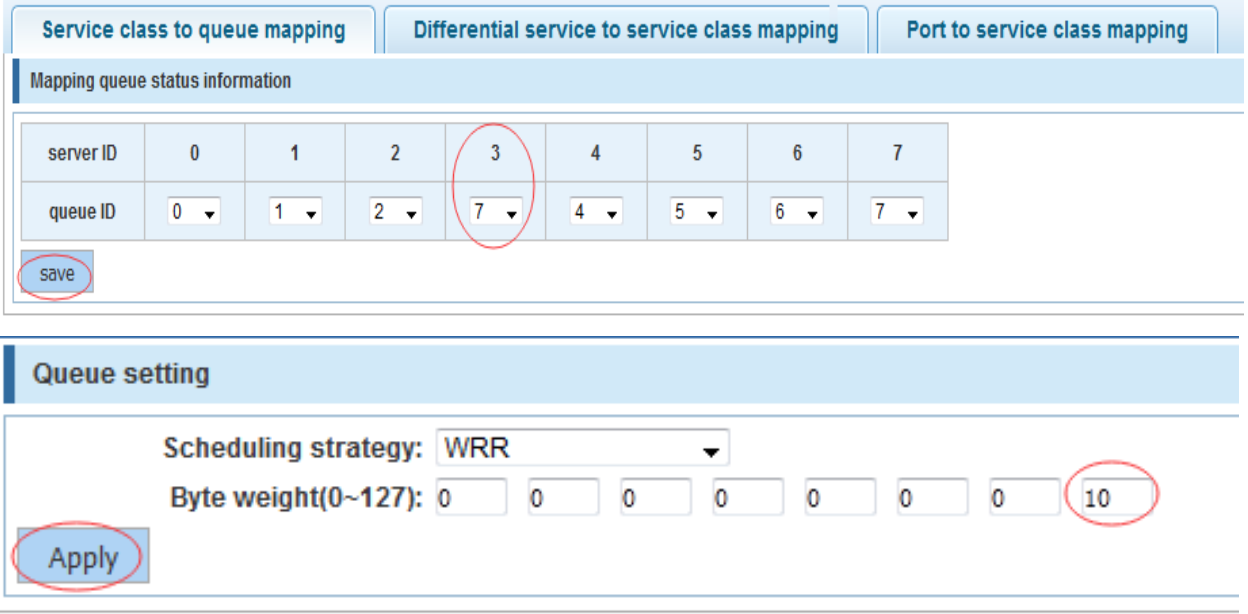

  • Set up queue scheduling policy

RR round-robin scheduling

SP absolute priority scheduling

WRR weighted round-robin scheduling

WFQ weighted fair scheduling

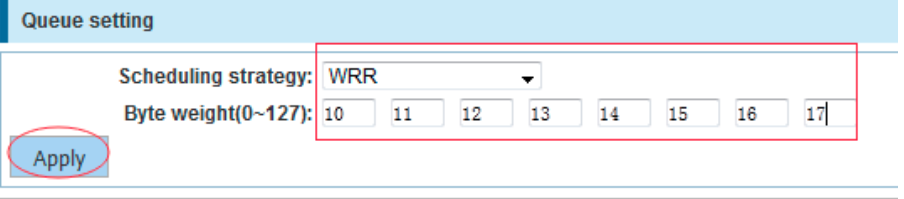

Configuration example

Screen Shot 2016-03-29 at 16.09.43.png

Mapping the queue

  • Service class to queue mapping

  • Differential service to service class mapping

  • Port to service class mapping

Service class queue mapping
  • Map service category to queues

Configuration example

Map Cos 3 to queue 7, set the queue weight 7 to 10

Screen Shot 2016-06-27 at 18.40.53.png

Differential service class mapping
  • Map services to service categories

Cos priority is greater than the DSCP, DSCP priority is greater than the port.

Configuration example

Map DSCP values 3, 12, 23 to cos 5:

Screen Shot 2016-06-27 at 18.43.07.png

Port to service class mapping
  • Map a port to corresponding service category

Cos priority is greater than the DSCP, DSCP priority is greater than the port.

Configuration example

Map ports 4, 5, 6 to cos4, cos5, cos6 respectively

Screen Shot 2016-03-29 at 17.31.19.png

Address table

  • Mac address add and delete

  • Mac study and Aging

  • Mac address filtering

Mac add and delete

  • Add static Mac and delete Mac

  • View current Mac address table

Configuration example

Set static Mac address:

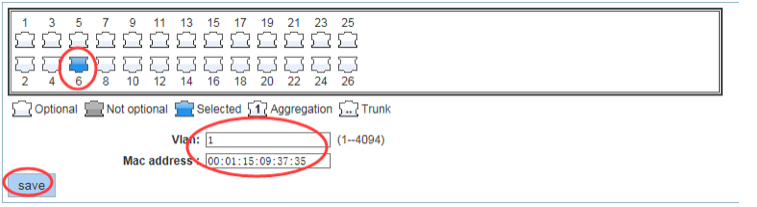

Screen Shot 2016-03-30 at 10.24.43.png

Delete Mac address:

Screen Shot 2016-03-30 at 10.25.36.png

Mac study and Aging

  • Set Mac address study limit and Mac address aging time

Configuration example

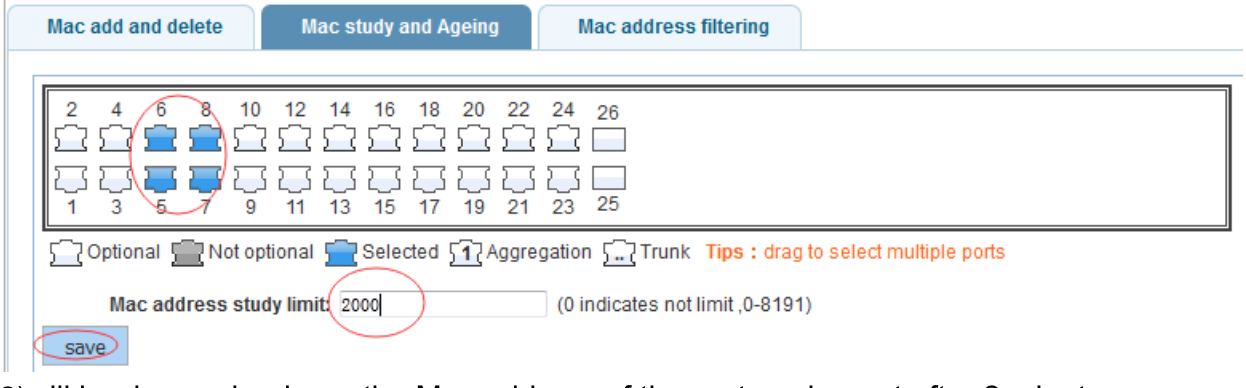

Set ports 5, 6, 7, 8 address study limit 2000:

Screen Shot 2016-06-27 at 18.44.36.png

Set up aging time to 2 minutes:

Screen Shot 2016-03-30 at 10.28.21.png

Mac address filtering

  • Add Mac Address to the filter

It’s impossible to add Multicast Mac Addresses

Configuration example

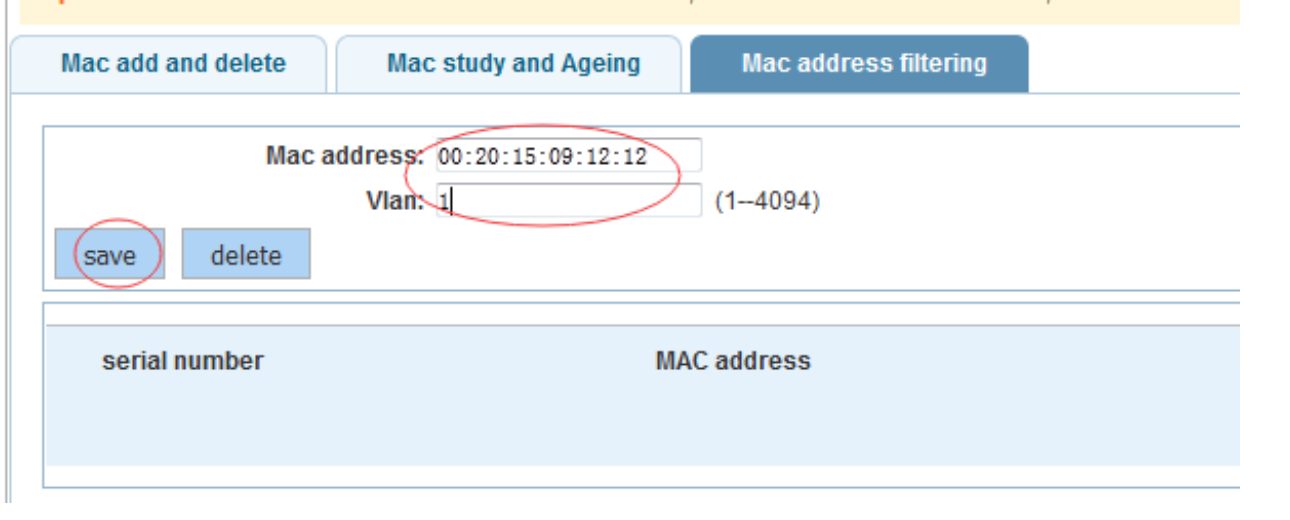

Screen Shot 2016-06-27 at 18.56.48.png

SNMP Config

  • SNMP Config

  • Rmon Config

SNMP Config

  • Community Config

  • Group Config

  • User Config

  • Trap Config

  • View Config

SNMP Config

Open SNMP:

Screen Shot 2016-06-28 at 13.17.08.png

Community Config
  • Specify the group access (read/write)

Max number of groups is 8.

Configuration example

Screen Shot 2016-06-28 at 15.56.32.png

View Config
  • Set the view rules to allow or disable access to some MIB objects

Configuration example

Screen Shot 2016-06-28 at 16.35.33.png

Group Config

First add a new View rule list via “View Config” menu, then add a new group in “Group Config”.

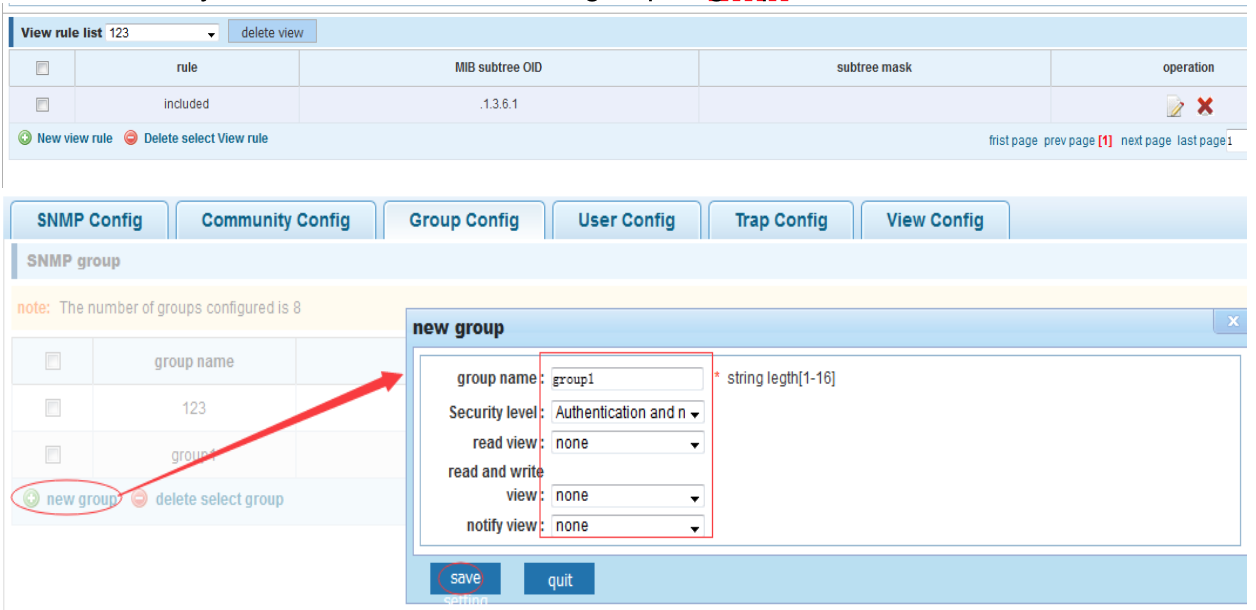

Configuration example

Screen Shot 2016-06-28 at 16.32.10.png

User Config

First add a new Group in “Group Config” menu, then add a new user in “User Config”

Configuration example

Screen Shot 2016-06-28 at 17.26.08.png

Trap Config

Configure SNMP trap hosts to receive messages.

Configuration example

Screen Shot 2016-06-28 at 17.48.35.png

Rmon Config

  • Statistics Group

  • History Group

  • Alarm Group

  • Event Group

Statistics Group
  • Set Ethernet interface statistics

Configuration example

Screen Shot 2016-06-28 at 18.13.19.png

History Group

  • Record the history of Ethernet interface information

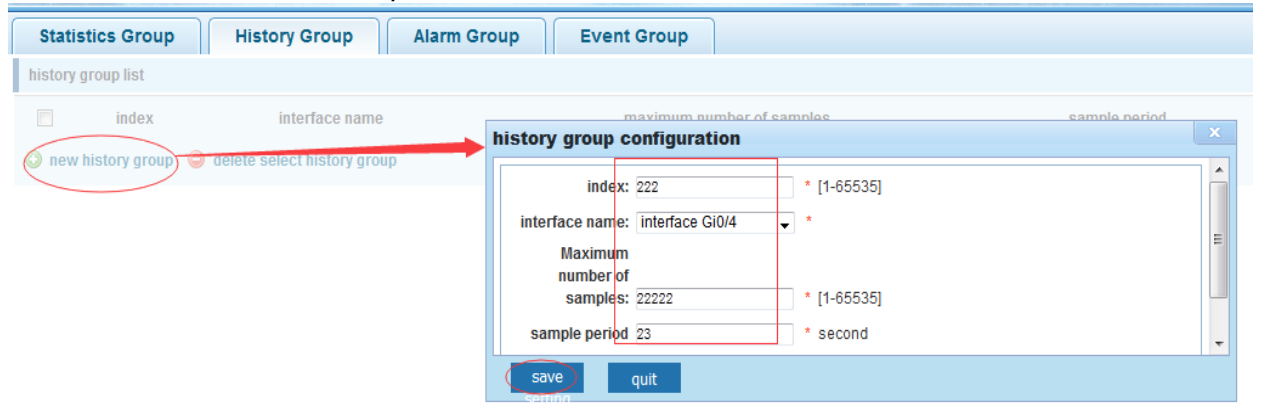

Configuration example

Screen Shot 2016-06-28 at 18.17.59.png

Event Group

  • Create event group

When the event is triggered, the system sends the trap message and / or writes to the log

Configuration example

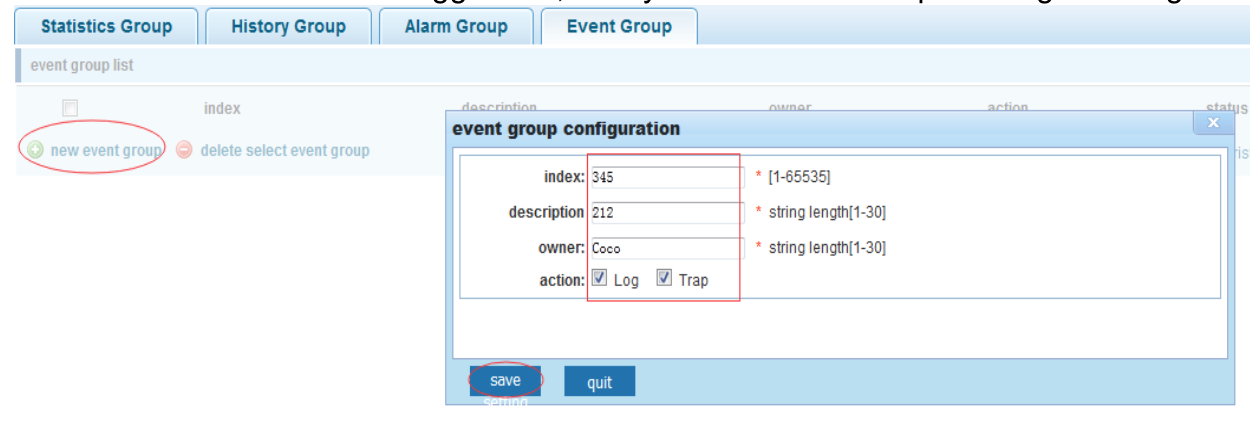

Screen Shot 2016-06-28 at 18.26.18.png

Alarm Group

  • Define alarm groups and specify the types of alarms

Configuration example

Screen Shot 2016-06-28 at 18.30.03.png


  • System Config

  • System Update

  • Config Management

  • Config Save

  • Administrator Privileges

  • Debug Log

System config

  • System settings

  • System restart

  • Password change

  • Ssh login

  • Telnet login

  • System log

System settings

Configuration example

(First create VLAN 2 in VLAN > VLAN Config:)

Screen Shot 2016-06-29 at 10.17.53.png

Screen Shot 2016-06-29 at 10.18.25.png

Screen Shot 2016-06-29 at 10.18.55.png

Screen Shot 2016-06-29 at 10.19.41.png

System restart

Click “Restart”, the process can take up to one minute. The page is automatically refreshed after the switch is restarted.

Screen Shot 2016-06-29 at 10.20.56.png

Password change


Screen Shot 2016-06-29 at 10.24.36.png

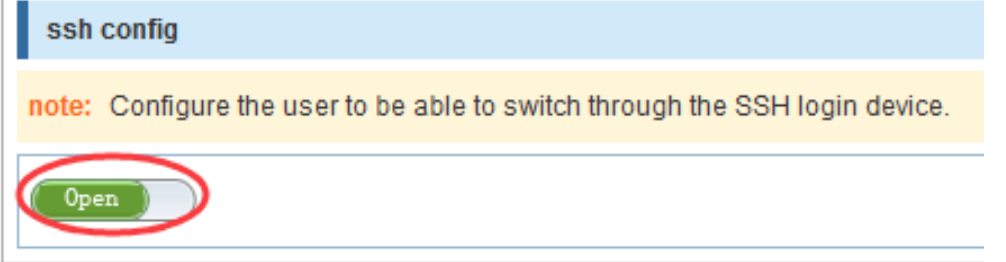

SSH login

  • Open SSH access

Screen Shot 2016-06-29 at 10.25.37.png

Telnet login

  • Open Telnet access

Screen Shot 2016-06-29 at 10.26.49.png

System log

  • Set up the syslog server and log level

  • View the logs

Configuration example

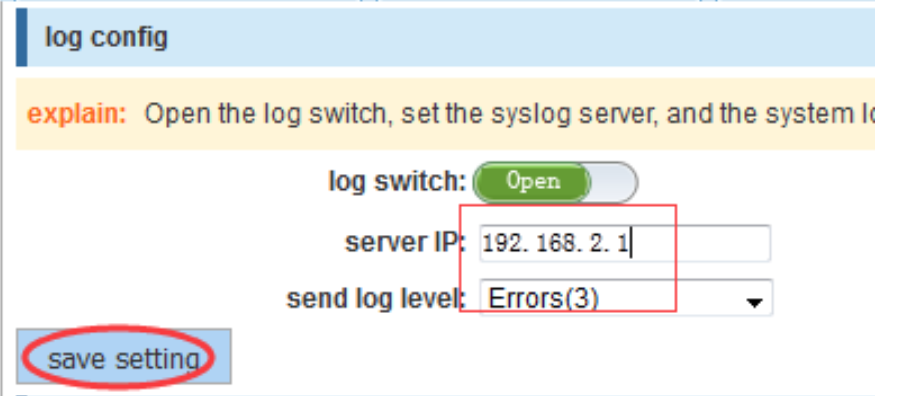

Screen Shot 2016-06-29 at 10.27.58.png

Screen Shot 2016-06-29 at 10.28.03.png

System update

This menu allows you to upload the new version. Before proceeding with the upgrade, make sure that the Switch model is correct.

During the upgrade, the web page might become temporarily unavailable, please do not power off or restart the Switch.

When the upgrade procedure is over, the prompt is shown on the web interface notifying you that the the switch has been successfully upgraded.

Screen Shot 2016-06-29 at 16.13.15.png

Config Management

  • Current configuration

  • Configuration backup

  • Restore factory configuration

Current configuration
  • Export configuration file

  • Import configuration file

  • Backup

Export configuration file

Screen Shot 2016-06-29 at 16.17.47.png

Import configuration file

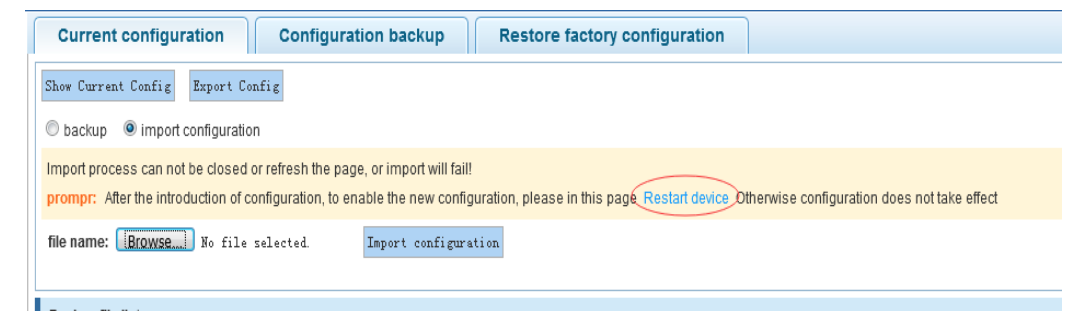

Do not close or refresh the page during the import!

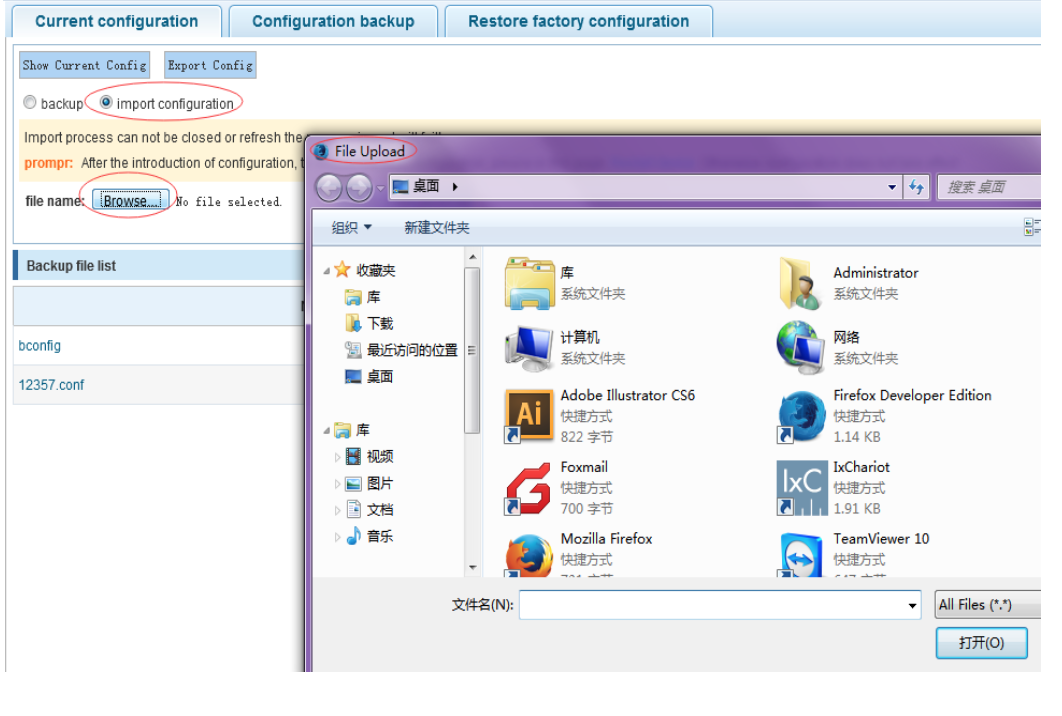

Screen Shot 2016-06-29 at 16.18.51.png

To apply the new configuration, it is necessary to restart the device.

Screen Shot 2016-06-29 at 16.19.23.png


Screen Shot 2016-06-29 at 16.19.44.png

Configuration Backup
  • Restore / rename / delete a previously saved backup

Rename backup:

Screen Shot 2016-06-29 at 16.22.08.png

Restore factory configuration
  • Export current configuration

  • Restore factory defaults

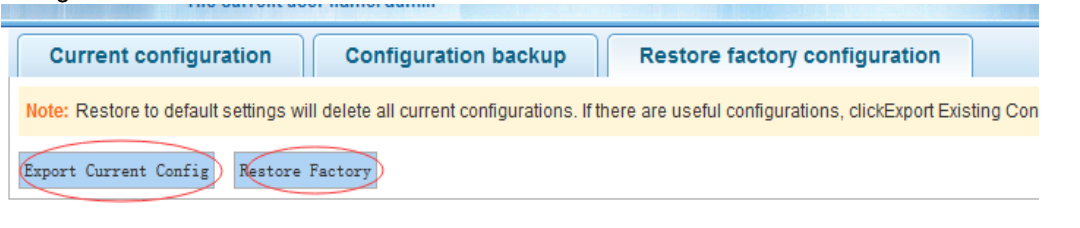

Restoring the system to factory defaults deletes all the current configuration. In case you need to save a backup of the current configuration, click to “Export current configuration” before proceeding with restoring the factory defaults.

Screen Shot 2016-06-29 at 16.37.54.png

Config Save

  • Save settings

“Save settings” applies the current configuration and deletes the default configuration.

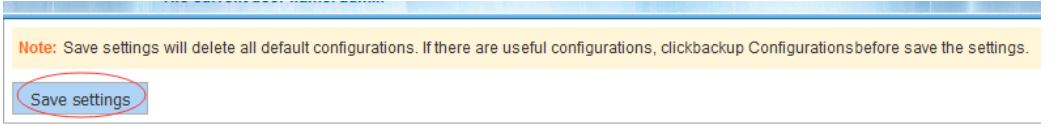

Screen Shot 2016-06-30 at 18.12.26.png

User management

  • Manage users and privileges

Only admin can access this page.

It is possible to add up to 5 users.

Ordinary users can only access the system home page.

Debug Log

  • Collect information

The procedure can take some time.

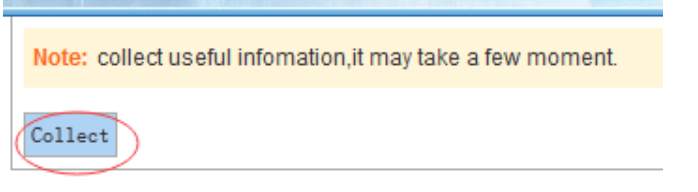

Screen Shot 2016-06-30 at 18.14.42.png

Switch monitoring

Please find below *.mib files allowing you to do detailed monitoring of Wildix 24 ports switch:


If Link indicator does not light up after making a connection, make sure that:

  • the network interface, network cable, or switch port is not damaged or defective

  • the proper cable type is used and its length does not exceed specified limits (see the datasheet)

  • cable is plugged into both the Switch and a PoE Powered Device

If the Power indicator does not turn on when the power cord is plugged in, make sure that the power outlet or the power cord is not damaged.

Make sure that you use standard RJ-45 cables. Cables that does not meet the standards of the sequence of data may slow down the data transmission speed or even block it.
